Industrial Odor Control

Source: Tri-Mer Corporation

Industrial Odor Control

Tri-Mer systems are ideal where performance must be continuous.

Request Information
Click Here To Download:

Applications include chemical plants, petrochemical facilities, municipal waste treatment, asphalt manufacturing, foundries and food processing.

The volume of gas that can be accommodated is virtually unlimited. Because some odors are detectable below 1 ppm, Tri-Mer odor control systems function at efficiencies of 99% and higher. Tri-Mer odor control systems are widely used for savory cookers and essential oils mixing rooms.

Tri-Mer offers an equipment design for reducing odors and corrosives, with minimal water and energy use, while offering efficiencies of 99%+.

Industrial Odor Control Guarantee

Tri-Mer odor control scrubbers are guaranteed to reduce odors from onion and meat cooking processes. Performance against specific compounds which testing has identified as being present in measurable quantities and which are known to have offensive odors are outlined below:

Hydrogen sulfide: For inlet concentrations up to 4000 ppb, the concentration at the outlet or the odor control system will be less than 1 ppb. This is the lowest reported odor concentration.

Methyl mercaptan: For inlet concentrations up to 100 ppb, the concentration at the outlet for the odor control system will be less than 0.05 ppb, which is within the range of reported odor threshold concentrations.

Dimethyl sulfide: For inlet concentrations up to 1000 ppb, the concentration at the outlet for the odor control system will be less than 0.3 ppb. This is the lowest reported odor threshold concentration.

Carbon disulfide: For inlet concentrations up to 100 ppb, the concentration at the outlet for the odor control system will be less than 16 ppb, which is the lowest reported odor threshold concentration.

n-Propyl mercaptan: For inlet concentrations up to 2200 ppb, the concentration at the outlet for the odor control system will be less than 5 ppb.

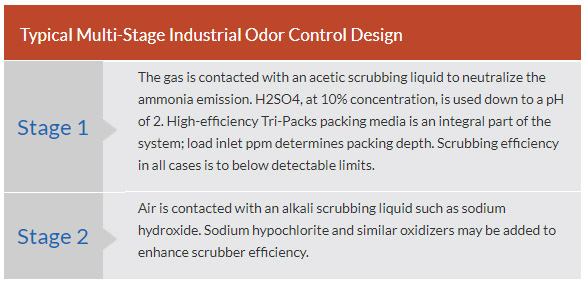

Many Tri-Mer systems have a dual tower design, with packing depth determined by odor composition and efficiency required. This engineering concept is the most efficient due to counterflow operation. The system allows optimum control of recirculation solution chemical concentrations. The Crossflow design is ideal for situations with dimensional constraints.

The ease with which Tri-Mer systems can be modified to accommodate new conditions is a key reason why Tri-Mer systems are among the most widely-specified in the world for control of industrial and municipal odors.

Multiple Contaminants

Tri-Mer odor control systems can simultaneously handle other contaminants in addition to the specific odor for which they’re engineered. These contaminants include particulate, other inorganic compounds and reactive materials including acids and other gases native to industrial processes.

Carbon Beds

Some applications require activated carbon in addition to the wet scrubber section to properly control odors. Carbon beds are available from Tri-Mer in vertical and horizontal formats.

Particulate Control

Where applications generate particulate as well as odors, Tri-Mer’s Whirl / Wet dust collector can be incorporated.
