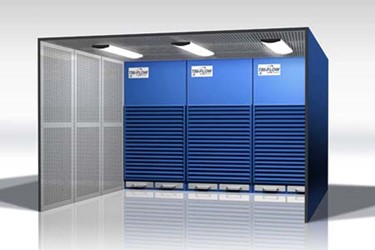

Environmental Enclosures

Source: Tri-Mer Corporation

Tri-Mer’s Tri-Flow meets the 5 requirements most important for an environmental enclosure in an industrial setting.

Protection from Dust and Noise

The Tri-Flow Environmental Enclosure was engineered for plant areas where dirty and/ or noisy tasks need to be confined to their own workspace. It provides HEPA-level filtration performance and has a MERV 16 rating. It is 99.999% efficient on particles 0.5 micron and larger by weight. Perforated acoustical panels contain and absorb noise generated inside the booth.

Efficient Filter Performance

The Tri-Flow Environmental Enclosure provides reliable and consistent capture velocities at the booth opening and throughout the booth. There is no air turbulence, no “hot spots,” and no uncomfortable drafts to interfere with operator productivity.

The capture velocity provided throughout the booth means that workers are not confined or tied to a fixed work space, hood, hose, etc. Because the collector pulls in dust through a grille that extends the full width of the booth, workers can freely perform tasks throughout the workspace. Typical inlet velocities are generally in the range of 125-150 FPM.

The filters used in the Tri-Flow Environmental Enclosure operate at a significantly lower pressure drop than traditional cartridge filters. This results in significantly lower energy consumption as well as longer filter life. Typically, Tri-Flow filters have a productive service life 3-5 times that of conventional filters.

Simple Operation and Maintenance

The Tri-Flow enclosure uses low-speed, low-noise direct drive blowers that are an integral part of the booth and power module.

A timer-controlled, automatic pulse jet cleaning system uses solenoid valves and blow-down pipes to assure that the booth maintains its capture velocity by measuring filter pressure drop and automatically cleaning the filters on demand. Filter access is easy, and change-out is simple and “tool-free.”

Booth Design Flexibility

The Tri-Flow Environmental Enclosure features a smooth, ledge-free interior to minimize dust accumulation. Each booth is custom-configured to suit the application, and can be expanded as facility needs change. Overhead lighting is provided to suit the application as well.

The Tri-Flow booth is the only environmental enclosure that is customized to your facility. A selection of 7 media options means there's an ideal solution for your application, whether it involves electrostatics, fine or sticky dusts, fumes, high temperatures, or hydrophobic / oleophobic particulate. All media is pleated and continuously bonded for maximum stability.

Low Life Cycle Cost

The Tri-Flow Environmental Enclosure provides manufacturing, process and job shop facilities with an exceptionally efficient, new option for in-plant enclosures. It is the ideal choice for companies who want to combine high filter efficiency - 99.999% on 0.5 micron and larger particles (by weight) - with lowest life cycle cost.

The Tri-Flow Environmental Enclosure is ideal for metalworking processes, particularly welding, plasma torch cutting, air arcing, sanding, grinding, chipping, and buffing. It is also highly effective for isolating processes such as powder coating, mixing and polishing. The Tri-Flow Environmental Enclosure, and Tri-Flow Compact Filter Systems are manufactured in the US, exclusively by Tri-Mer Corporation.
